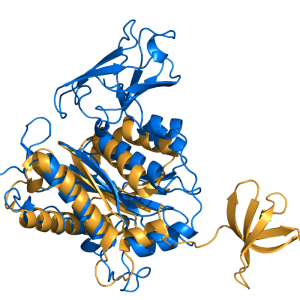

| + | [[Image:cealign_ex1.png|300px|thumb|right|cealign superposition of 1c0mB and 1bco]] |
| − | This script is a Python implementation of the CE algorithm pioneered by Drs. Shindyalov and Bourne (See References). It is a fast, accurate structure-based protein alignment algorithm. There are a few changes from the original code (See Notes), and "fast" depends on your machine and the implementation. That is, on my machine --- a relatively fast 64-bit machine --- I can align two 400+ amino acid structures in about 0.300 s with the C++ implementation. In Python however, two 165 amino acid proteins took about 35 seconds!
| |
| | | | |
| − | When coupled to the Kabsch algorithm, this should be able to align any two protein structures, using just the alpha carbon coordinates.
| + | [[cealign]] aligns two proteins using the CE algorithm. It is very robust for proteins with little to no sequence similarity (twilight zone). For proteins with decent structural similarity, the [[super]] command is preferred and with decent sequence similarity, the [[align]] command is preferred, because these commands are much faster than [[cealign]]. |
| | | | |
| − | This plugs into PyMol very easily. See [[Cealign#The_Code|the code]] and [[Cealign#Examples|examples]] for installation and usage. | + | ''This command is new in PyMOL 1.3, see the [[cealign plugin]] for manual installation.'' |
| | | | |
| − | == Comparison to PyMol == | + | == Usage == |
| − | '''Why should you use this?'''
| |
| | | | |
| − | PyMol's structure alignment algorithm is fast and robust. However, its first step is to perform a sequence alignment of the two selections. Thus, proteins in the '''twilight zone''' or those having a low sequence identity, may not align well. Because CE is a structure-based alignment, this is not a problem. Look at the following example. The image at LEFT was the result of CE-aligning two proteins (1C0M to 1BCO). The result is '''88''' aligned (alpha carbons) residues (not atoms) at '''2.78 Angstroms'''. The image on the RIGHT shows the results from PyMol's align command: an alignment of '''221 atoms''' (not residues) at an RMSD of '''15.7 Angstroms'''. To make the alignment easier to see, cealign (actually the [[Kabsch]] code) colors the aligned residues differently.
| + | cealign target, mobile [, target_state [, mobile_state |
| | + | [, quiet [, guide [, d0 [, d1 [, window [, gap_max |
| | + | [, transform [, object ]]]]]]]]]] |
| | | | |
| − | <gallery>
| + | == Arguments == |
| − | Image:Ce_works.png|Cealign's results
| |
| − | Image:Pymol_align.png|PyMol's results
| |
| − | </gallery>
| |
| | | | |
| | + | '''Note''': The '''mobile''' and '''target''' arguments are swapped with respect to the [[align]] and [[super]] commands. |
| | | | |
| − | == Examples == | + | * '''target''' = string: atom selection of target object |
| − | === Usage === | + | * '''mobile''' = string: atom selection of mobile object |
| − | <source lang="python">
| + | * '''target_state''' = int: object state of target selection {default: 1} |
| − | cealign 1cll and i. 42-55, 1ggz and c. A
| + | * '''mobile_state''' = int: object state of mobile selection {default: 1} |
| − | cealign 1kao, 1ctq
| + | * '''quiet''' = 0/1: suppress output {default: 0 in command mode, 1 in API} |
| − | cealign 1fao, 1eaz
| + | * '''guide''' = 0/1: only use "guide" atoms (CA, C4') {default: 1} |
| − | </source>
| + | * '''d0, d1, window, gap_max''': CE algorithm parameters |
| | + | * '''transform''' = 0/1: do superposition {default: 1} |
| | + | * '''object''' = string: name of alignment object to create {default: (no alignment object)} |
| | | | |
| − | === Results === | + | == Example == |
| − | <gallery>
| |
| − | Image:Cealign1.png|EASY: 1FAO vs. 1EAZ; 88 residues, 1.16 Ang
| |
| − | Image:Cealign2.png|EASY: 1CBS vs. 1HMT; 120 residues, 2.07 Ang
| |
| − | Image:Cealign3.png|MODERATE: 1A15 vs 1B50; 56 residues, 6.67 Ang.
| |
| − | Image:Align.png|EASY: 1OAN vs. 1S6N; aligned to 2.26 Ang. RMSD.
| |
| − | Image:Cealign_ex_hard.png|HARD: 1RLW to 1BYN; 104 residues; 3.94 Ang.
| |
| − | Image:1ten_3hhr.png|HARD: 1TEN vs. 3HHR; 72 residues, 3.13 Ang.
| |
| − | Image:2SIM_1NSB.png|HARD: 2SIM vs. 1NSB; 280 residues, 5.00 Ang.
| |
| − | Image:1CEW_1MOL.png|HARD: 1CEW vs. 1MOL; 72 residues, 3.63 Ang.
| |
| − | </gallery>
| |
| | | | |
| − | == Installation == | + | <syntaxhighlight lang="python"> |
| | + | fetch 1c0mB 1bco, async=0 |
| | + | as ribbon |
| | + | cealign 1bco, 1c0mB, object=aln |
| | + | </syntaxhighlight> |
| | | | |
| − | '''note:''' Windows installer coming soon.
| + | == See Also == |
| | | | |
| − | ===Requirements===
| + | * [[super]] |
| − | # Numpy
| + | * [[align]] |
| − | # Python 2.4+ with distutils
| + | * [[cealign plugin]] |
| − | # C compiler
| |
| | | | |
| − | ===Directions===
| + | [[Category:Commands|Align]] |
| − | # uncompress the distribution file '''cealign-VERSION.tgz'''
| + | [[Category:Structure_Alignment|Align]] |
| − | # cd cealign-VERSION
| |
| − | # sudo python setup.py install
| |
| − | # insert "run DIR_TO_CEALIGN/cealign.py" and "run DIR_TO_CEALIGN/qkabsch.py" into your '''.pymolrc''' file, or just run the two Python scripts by hand.
| |
| − | # load some molecules
| |
| − | # run, '''cealign molecule1, molecule2'''
| |
| − | # enjoy
| |
| − | | |
